Wi-Fi 5

IEEE 802.11ac/n/a 5 GHz

IEEE 802.11n/b/g 2.4 GHz

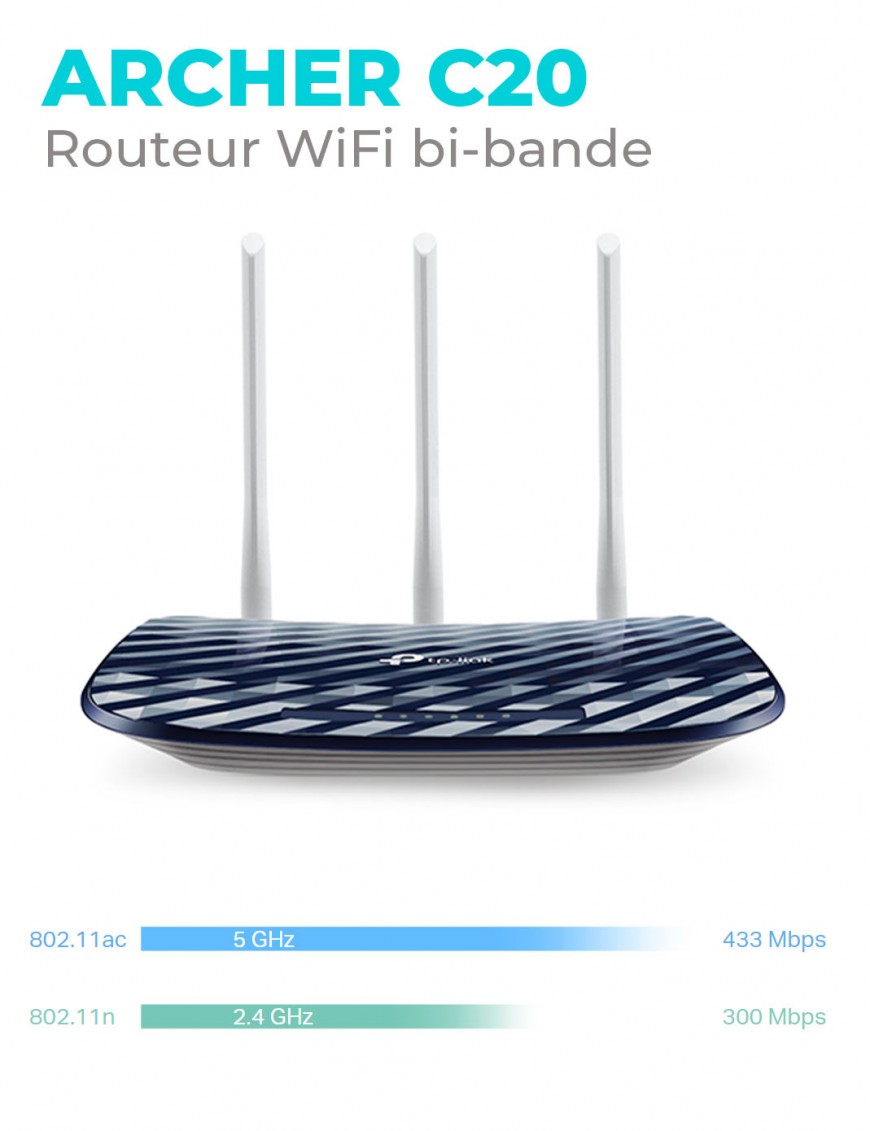

AC750

5 GHz: 433 Mbps (802.11ac)

2.4 GHz: 300 Mbps (802.11n)

2 Bedroom Houses

3× Fixed Antennas

Multiple antennas form a signal-boosting array to cover more directions and large areas

Medium

Dual-Band

Allocate devices to different bands for optimal performance

Router Mode

Access Point Mode

Range Extender Mode

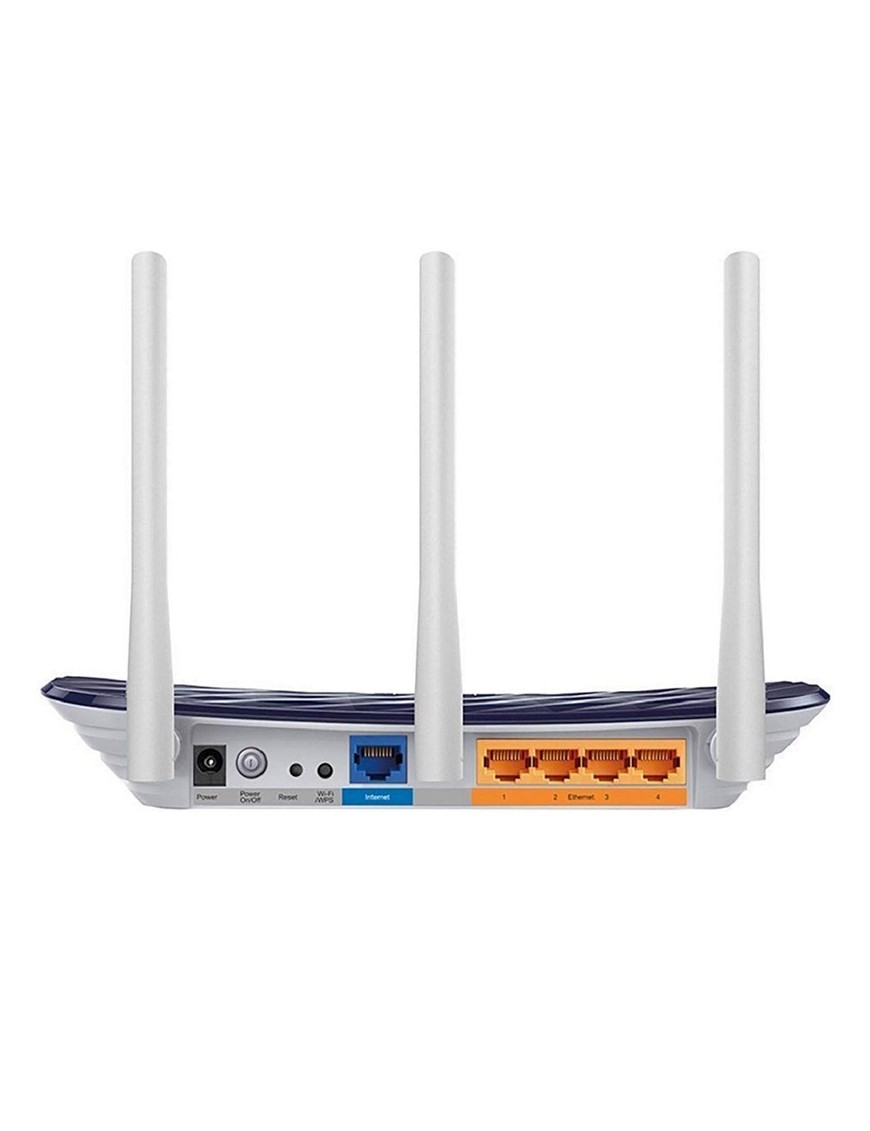

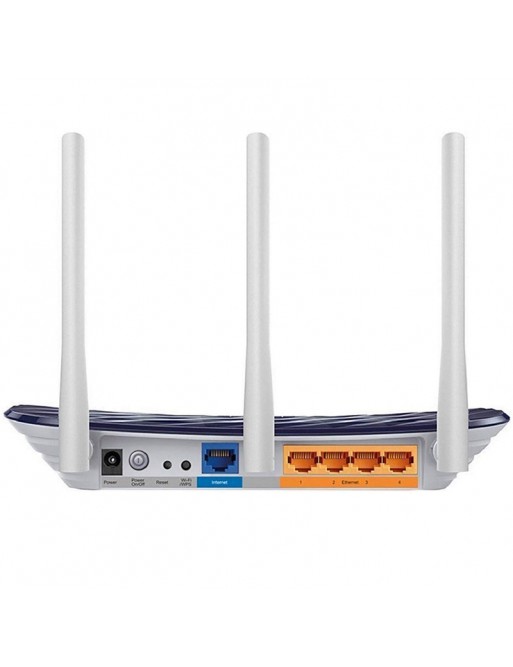

1× 10/100 Mbps WAN Port

4× 10/100 Mbps LAN Ports

Boutons WPS/Wi-Fi Button

Power On/Off Button

Reset Button

9 V ⎓ 0.6 A

Encryption WEP

WPA

WPA2

WPA/WPA2-Enterprise (802.1x)

SPI Firewall

Access Control

IP & MAC Binding

Application Layer Gateway

1× 5 GHz Guest Network

1× 2.4 GHz Guest Network

IPv4

IPv6

URL Filtering

Static IP

PPPoE

PPTP

L2TP

QoS by Device

NAT Forwarding Virtual Server

Port Forwarding

Port Triggering

DMZ

UPnP

IGMP Proxy

IGMP Snooping

Address Reservation

DHCP Client List

Server

NO-IP

Comex

DynDNS

Tether App

Webpage

Check Web Emulator>

9.1 × 5.7 × 1.4 in

(230 × 144 × 35 mm)

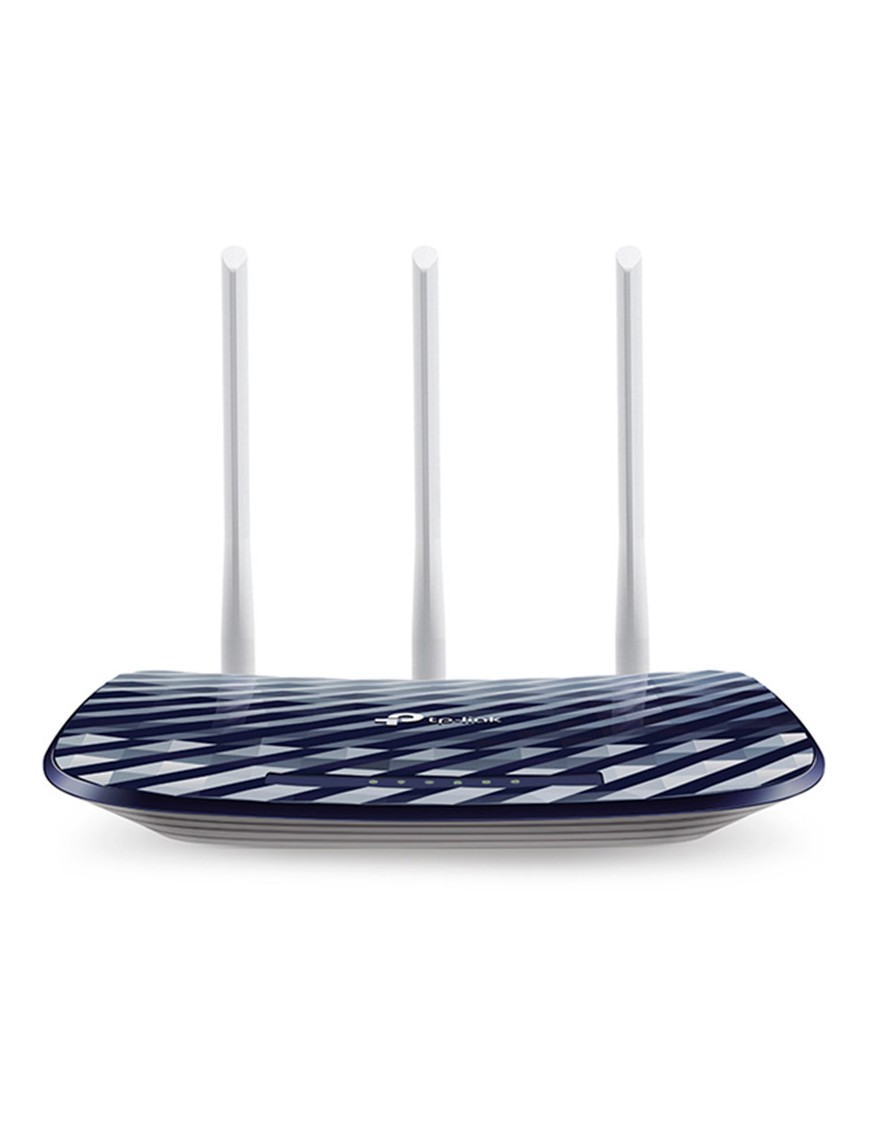

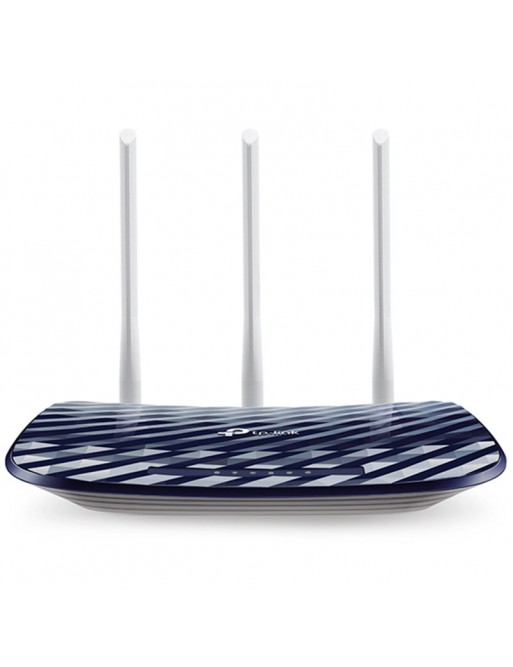

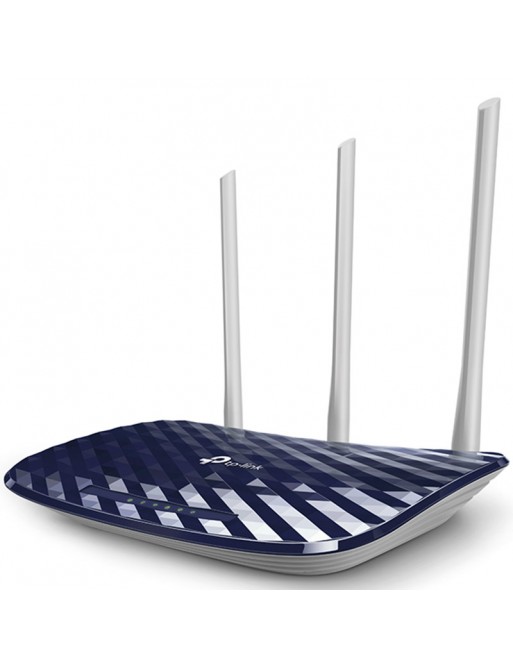

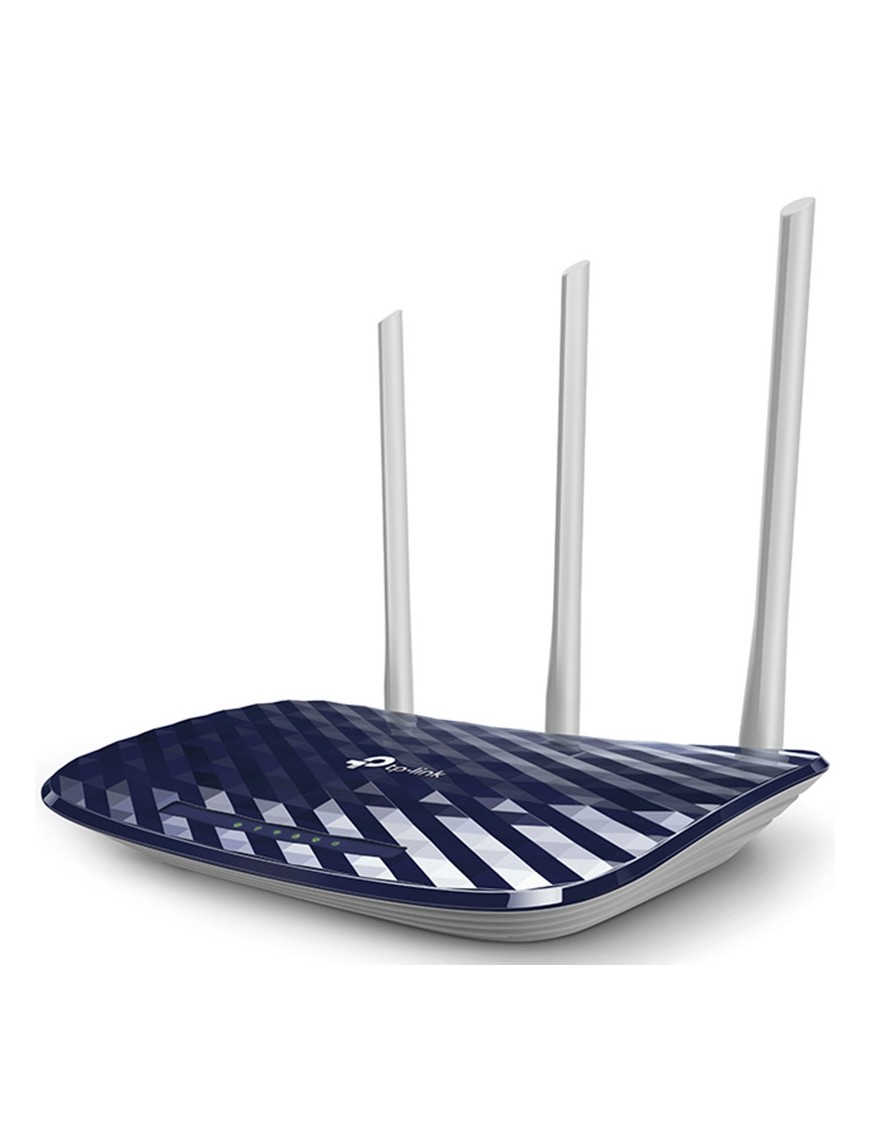

Wi-Fi Router Archer C20

Power Adapter

RJ45 Ethernet Cable

Quick Installation Guide

Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser

Cable or DSL Modem (if needed)

Subscription with an internet service provider (for internet access)

Operating Temperature: 0℃~40℃ (32℉ ~104℉)

Storage Temperature: -40℃~70℃ (-40℉ ~158℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

CE: <20dBm(2.4GHz)

<23dBm(5GHz)

5GHz: 11a 54M: -76dBm; 11ac VHT20 MCS8: -71dBm;

11ac VHT40 MCS9: -66dBm; 11ac VHT80 MCS9:

-62dBm

2.4GHz:

11g 54M: -76dBm11n; HT20 MCS7: -73dBm;

11n HT40 MCS7: -71dBm
